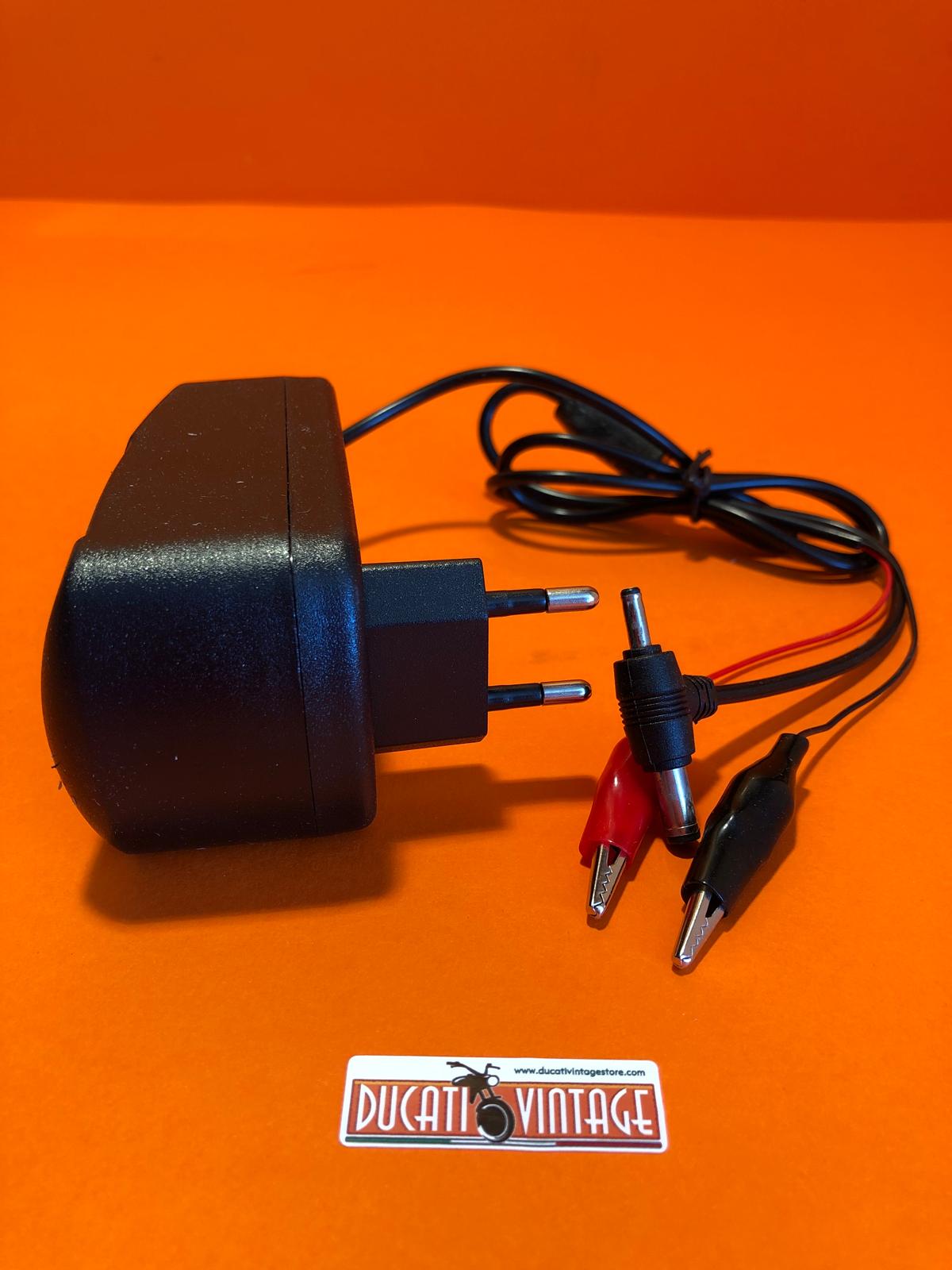

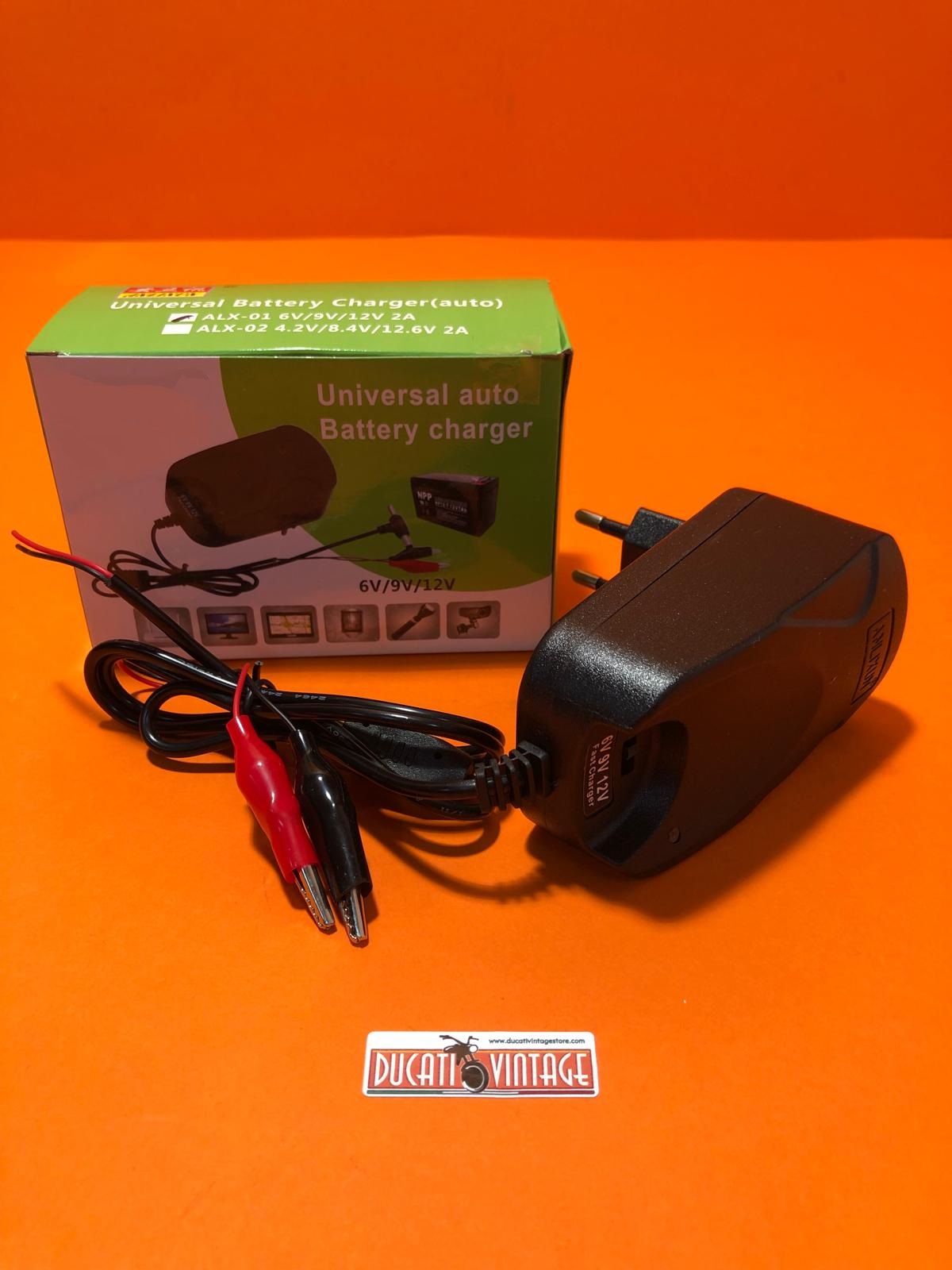

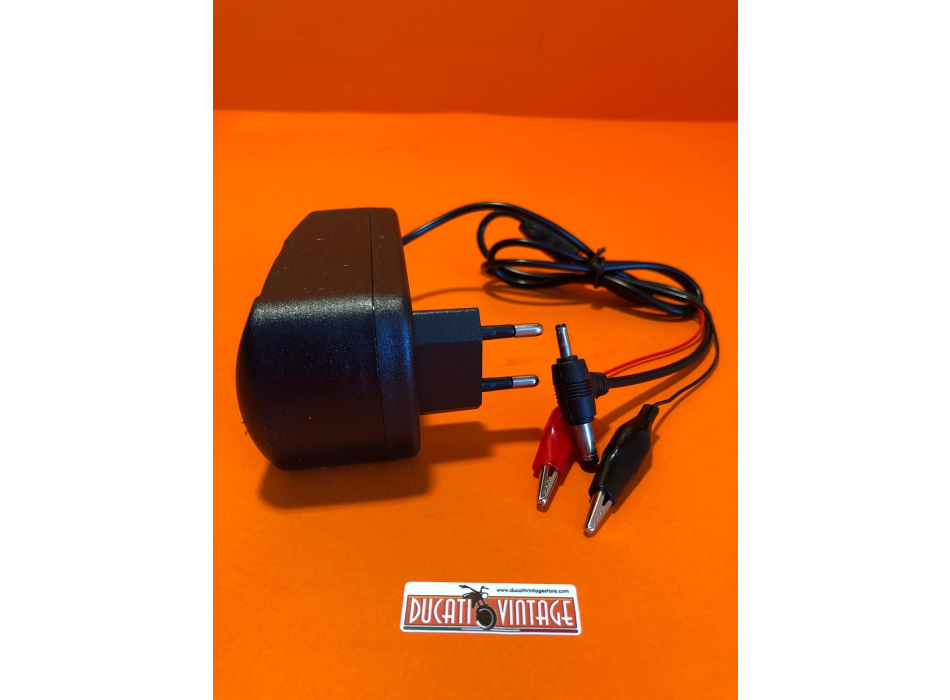

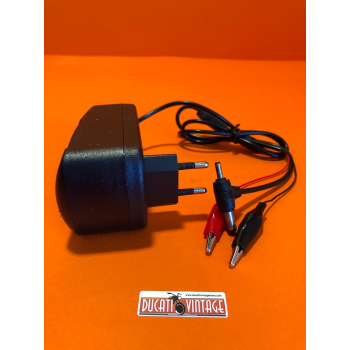

The Universal 6V 9V 12V battery charger 6V 9V 12V Adjustable voltage lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 7.2V(for 6v lead acid battery)
10.8V(for 9V lead acid battery),
14.4V(for 12V Lead acid battery)
C:Charging Mode:360W series 12V 20A 24V 12A 36V 8A 48V 6A 60V 5A 72V 4.5A 84V 3A battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The batteries charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension:360W series 12V 20A 24V 12A 36V 8A 48V 6A 60V 5A 72V 4.5A 84V 3A battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Universal 6V 9V 12V battery charger 6V 9V 12V Adjustable voltage lead acid battery charger
